Whether you need to simply record video footage or increase safety by improving the drivers view around the vehicle – then this is the system for you!
MAN TGS Tipper Truck
- Example of a 5 x Camera system
- Forward Facing HD Camera
- Off Side and Near side blindspot Cameras
- Load Camera
- Rear view Full HD Camera
- 1TB Hardrive (Records approx 3 weeks of video)
- Left hand Indicator trigger – full screen to eliminate n/s blindspot
- Reverse Trigger – auto full screen when in reverse gear
- Driver control of N/S, Load and Reverse screens with auto take over when reverse or left hand indicator is engaged.
- Trigger controlled monitor power up – even if the driver turns the monitor off!
Take things to a whole new level with a fully customisable bespoke camera system built to your exact requirements!
How it works…

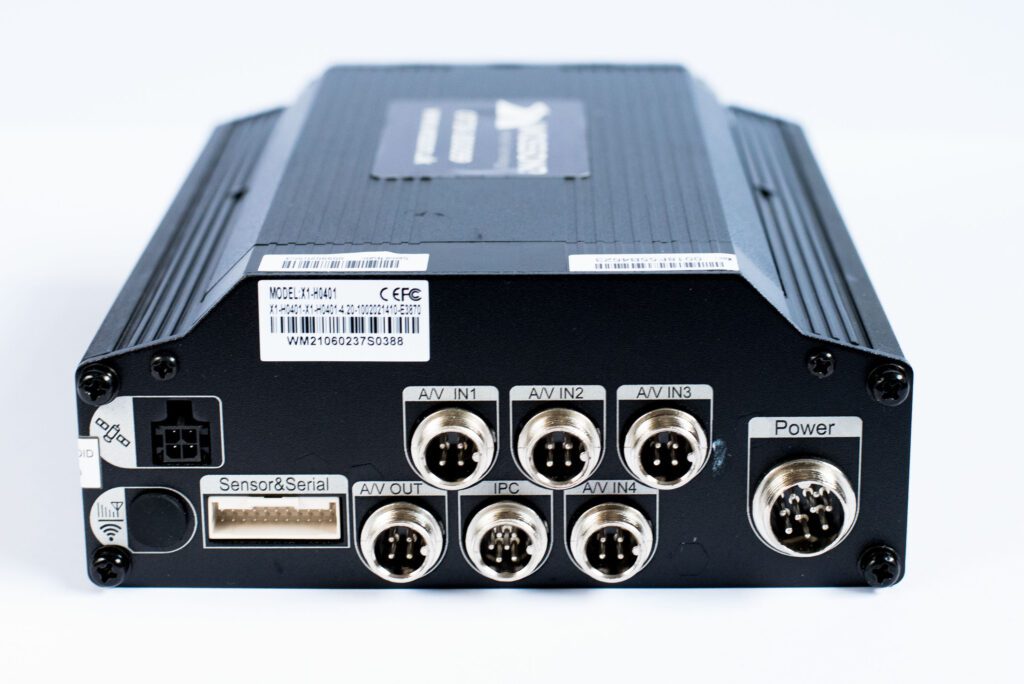

The hub of the system is the MDVR unit, (Mobile Digital Video Recorder) and this records the video onto a hard drive. The rest of the system is built and configured to your exact requirements…
Simply Choose…
- How many cameras? 1-16 cameras
- The recording capacity 500GB, 1TB or 2TB
- In cab monitor type (if needed)
- Monitor Triggers ie. Left turn, Reverse, PTO (or none at all).
- Any bespoke configuration options.
Cameras

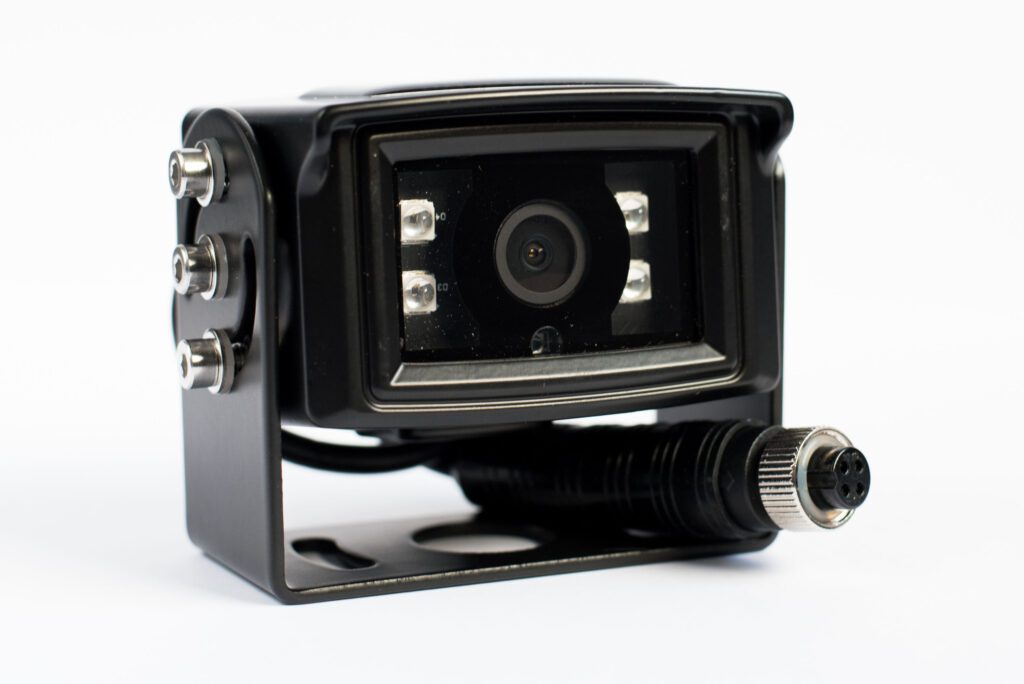

Rear Camera
- Made for HGV use
- Available in AHD or FHD
- Infra Red
- Heavy Duty camera and bracket

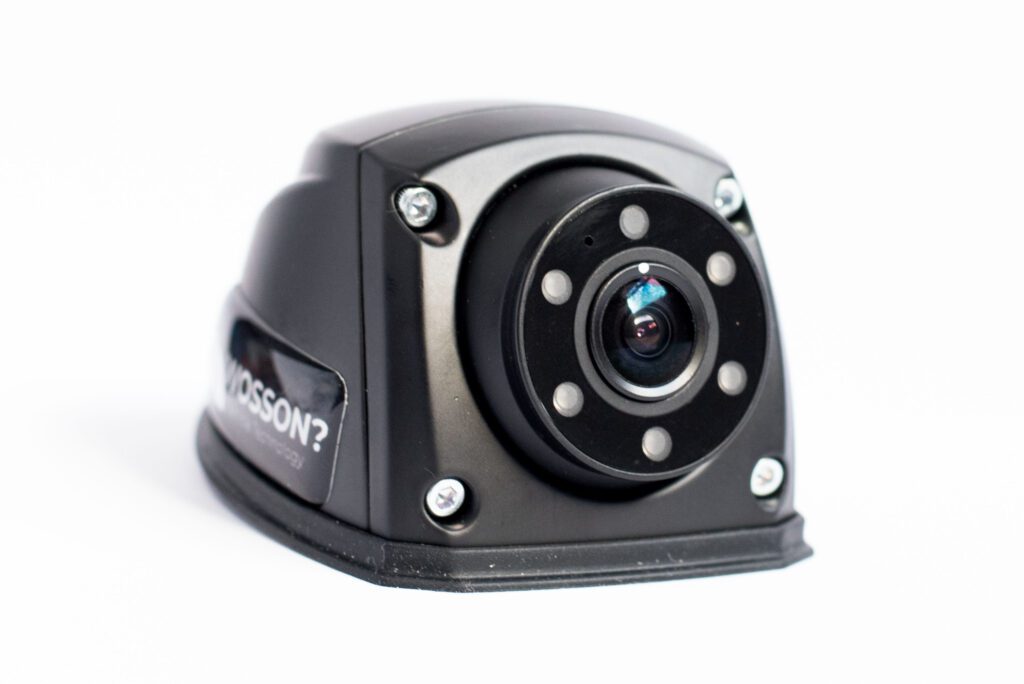

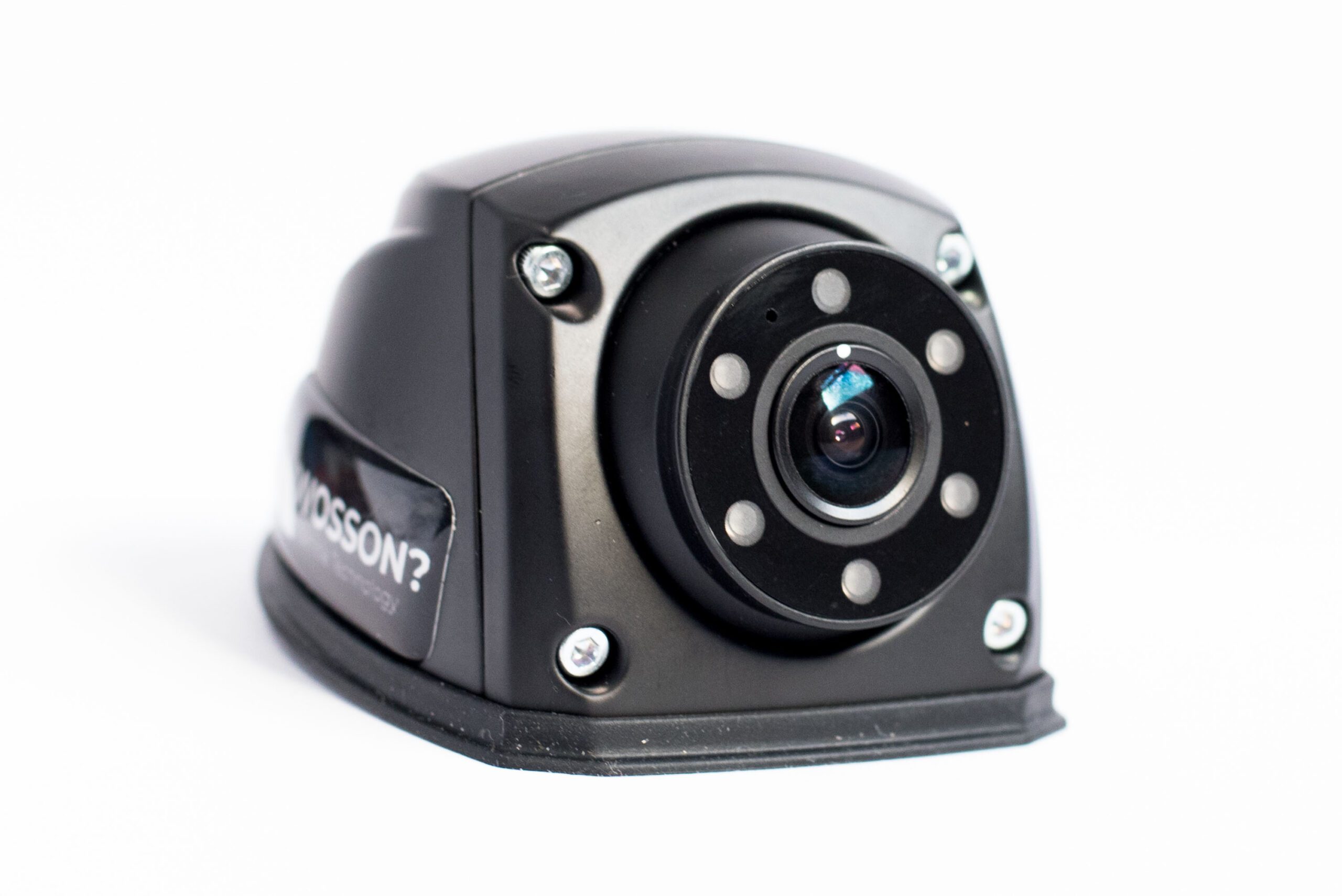

Side Camera
- Made for HGV use
- Infra Red
- Wide 150 degree angle image
- Metal Body / Heavy Duty
Multi-use camera
- Slim body for tight spaces
- Suitable for Cars and Vans
- AHD resolution
- Metal Body / Sturdy Construction

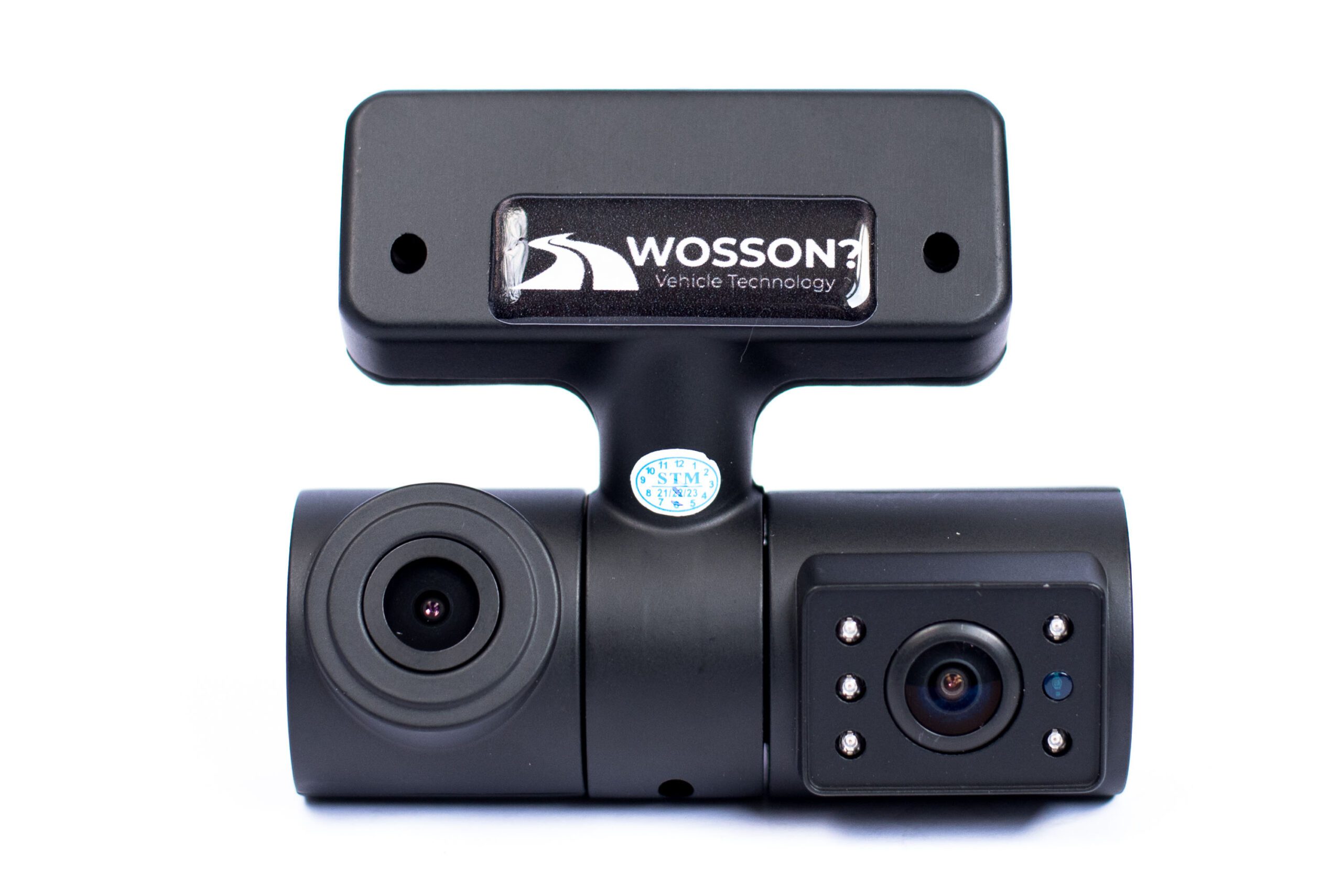

Forward facing
- Compact design
- Suitable for Cars and Vans
- Full HD
- Forward only, optional internal
All of our cameras are heavy duty, most have metal bodies and are designed to stand up to the hard life they will face through daily use in a commercial vehicle.
Monitors
7” Van Monitor – large screen discrete installation

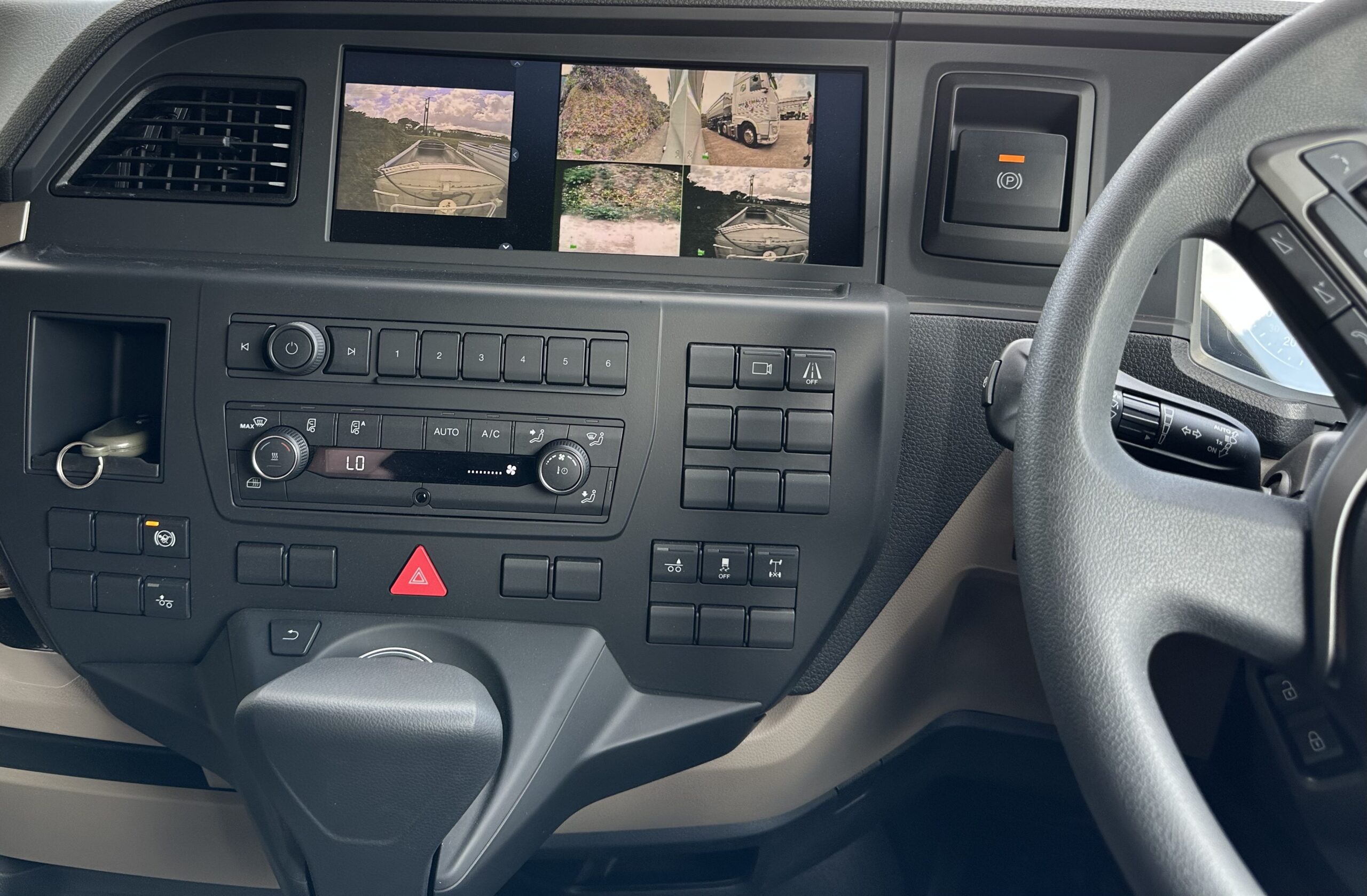

OEM Vehicle screen

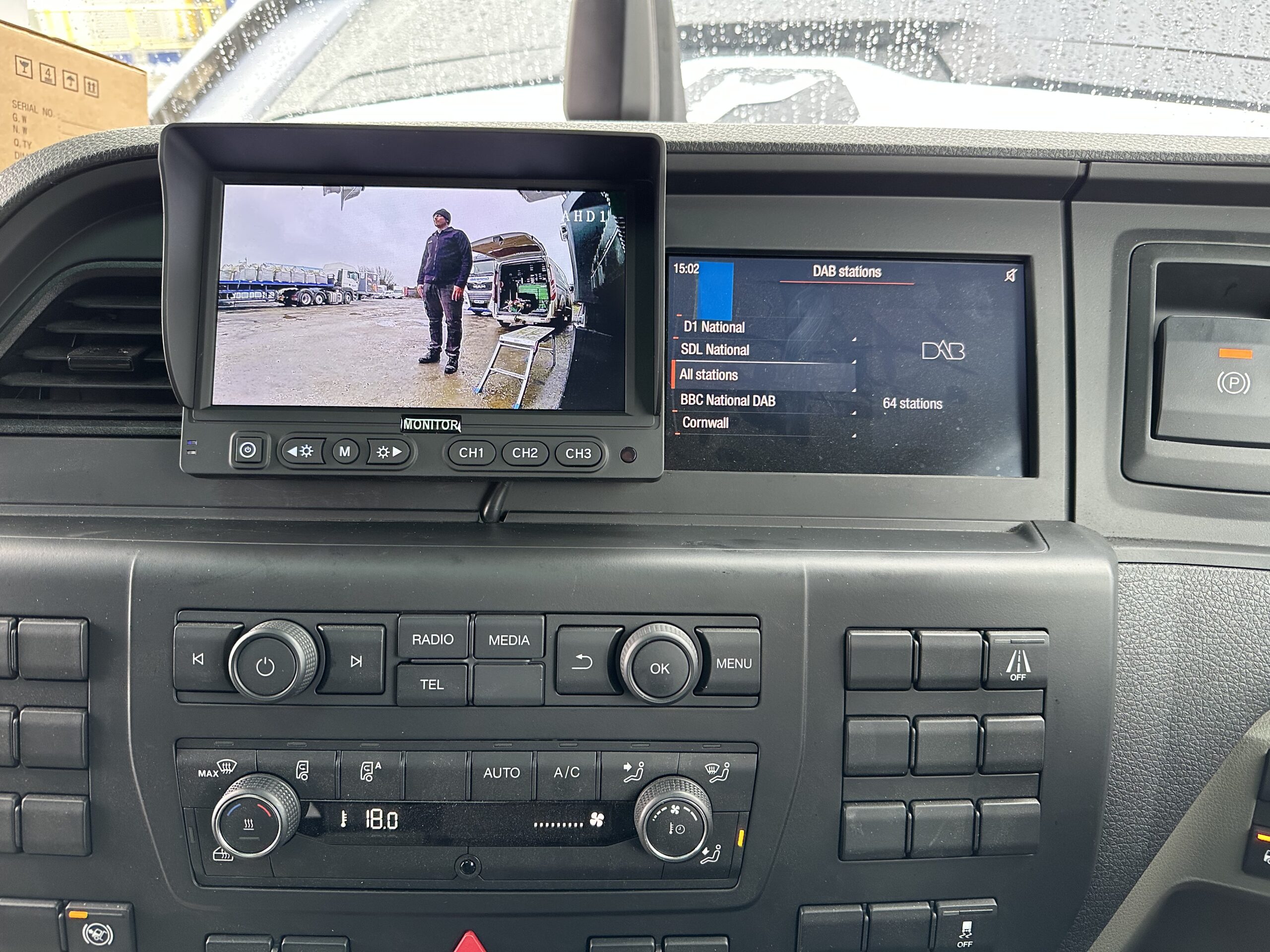

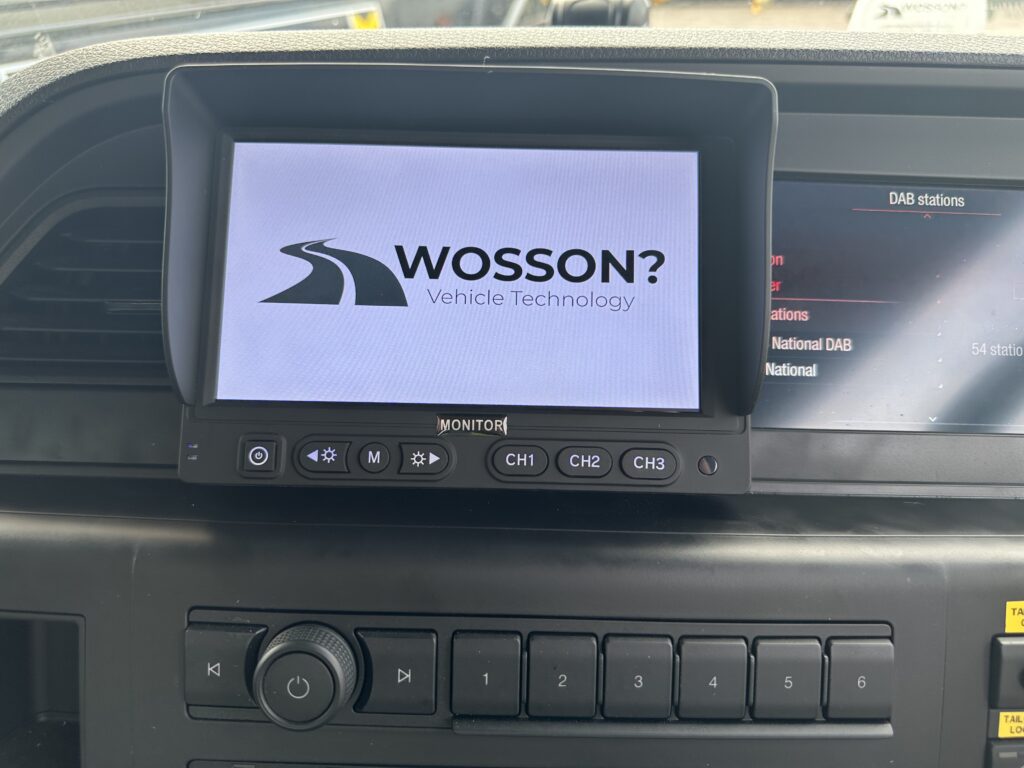

7” Heavy Duty – ideal for Trucks
Our cameras can be installed almost anywhere on your vehicle but here are some of the most popular views:
N/S Blind Spot
Reverse camera
Draw Bar Camera

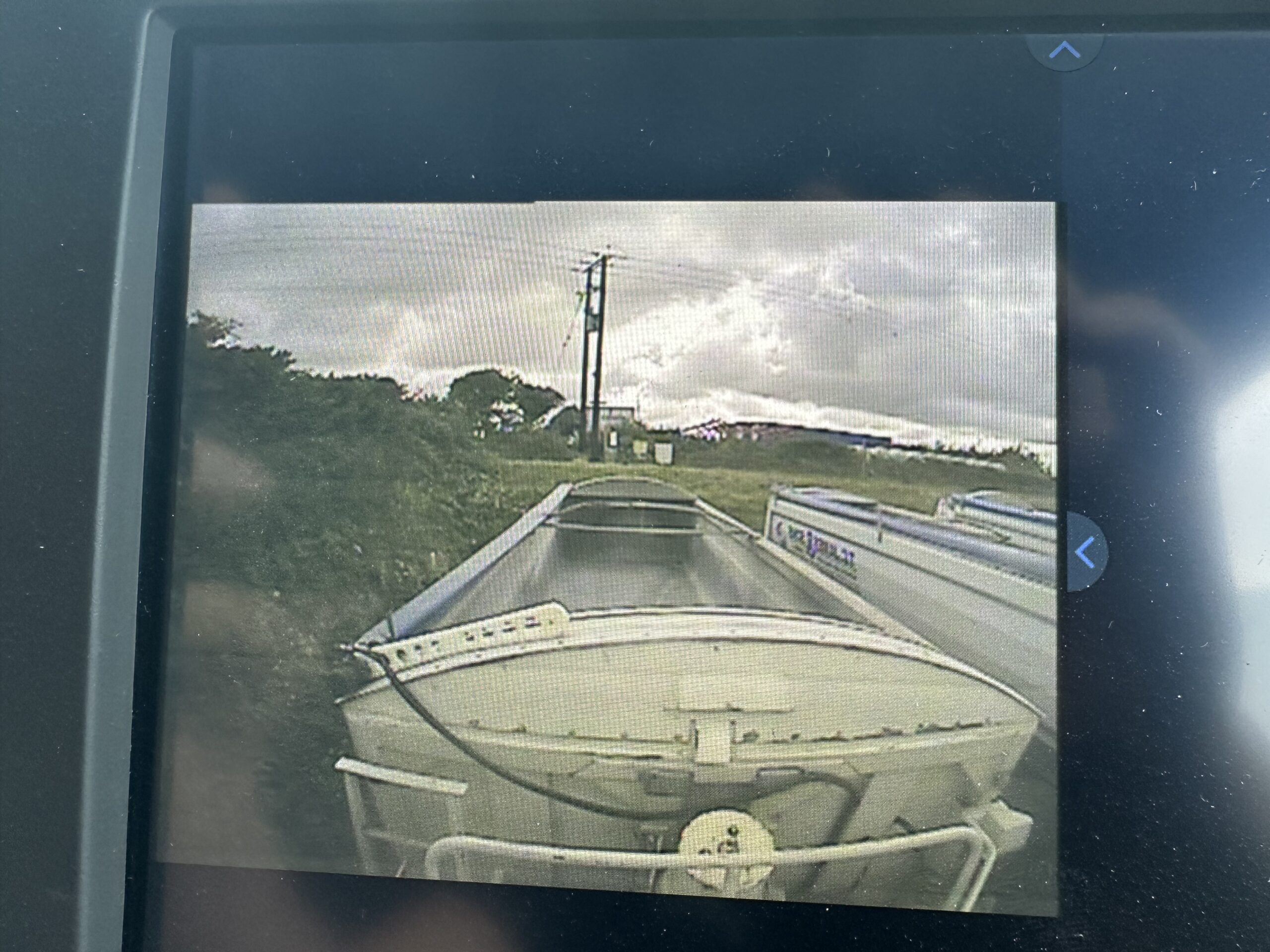

Load Camera

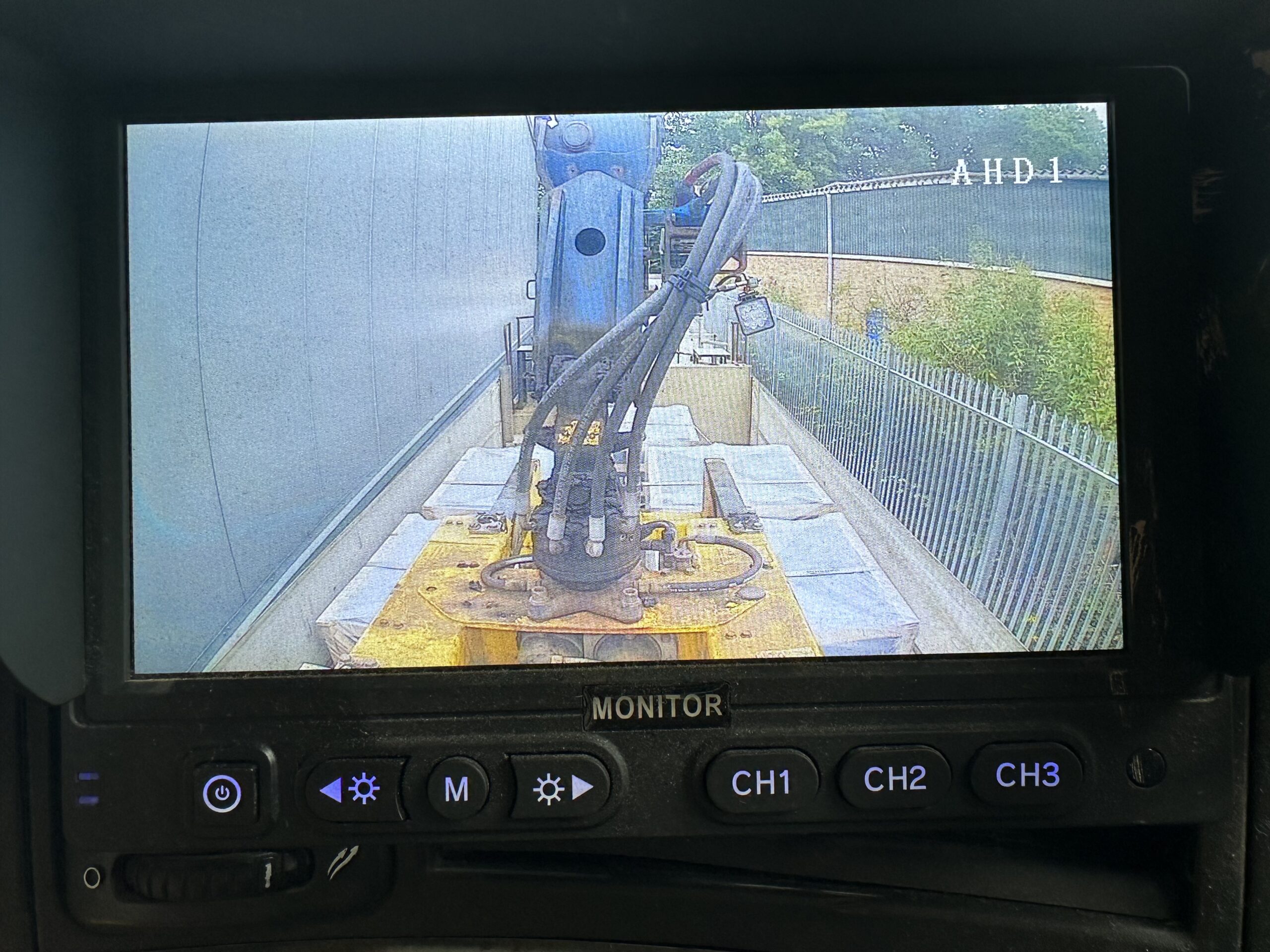

Load camera

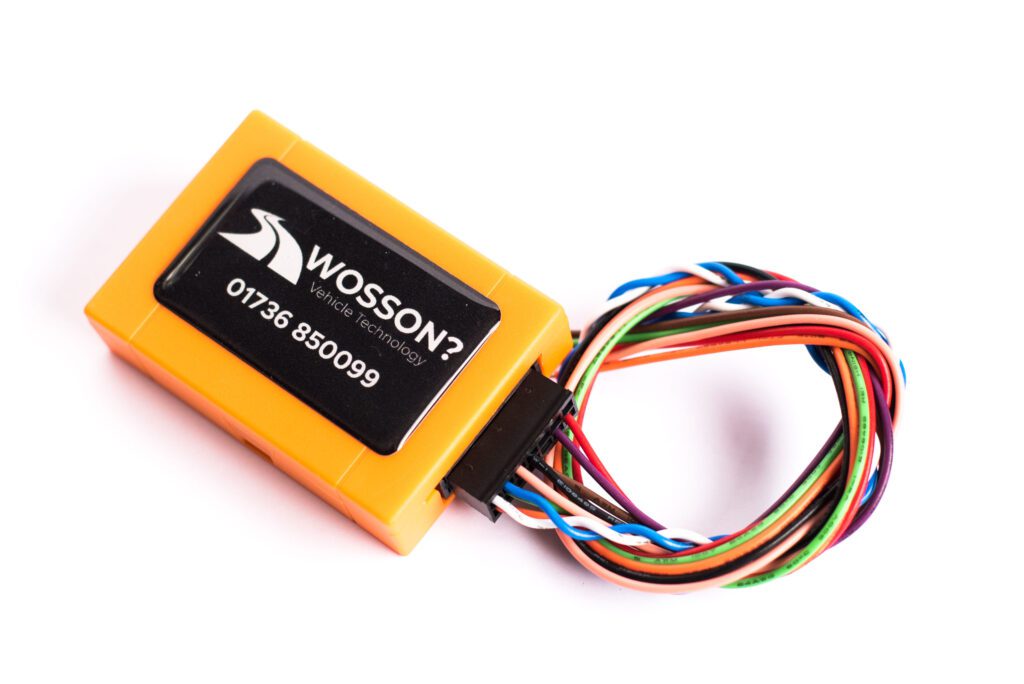

Triggers & Sensors
If increasing the visibility around the vehicle is a requirement then we can configure the system to accept inputs directly from the vehicle. It may be a simple as you would like to display a full screen image of behind the vehicle when reverse gear is engaged or your needs may be more complex… The Wosson? MDVR system is more than capable of addressing these requirements and can take commands from the vehicle via high or low digital signals or directly from the vehicles Control Area Network or “Can Bus” as it’s often called.
Popular Triggers Include;
- Reverse Gear Engaged
- Left Turn
- Right Turn
- PTO Engaged
- Body Up Signal
Extra storage? No Problem!
- 500 GB
- 1 TB
- 2 TB
Many of our customer opt to purchase a spare hard drive so they can simply swap the unit when they wish to retrieve footage from the vehicle
Trailer Camera Connections
Our Wosson suzie kits enable trailer cameras to be connected to the Wosson Pro MDVR system. Unlike other systems on the market we use an “inverted” 7 pin suzie connection and the sockets are clearly labeled “cameras only” (so can’t be mixed up with other suzies on the vehicle).
We offer suzie kits for 1, 2,3 & four camera connections.
